Pressure Test Units

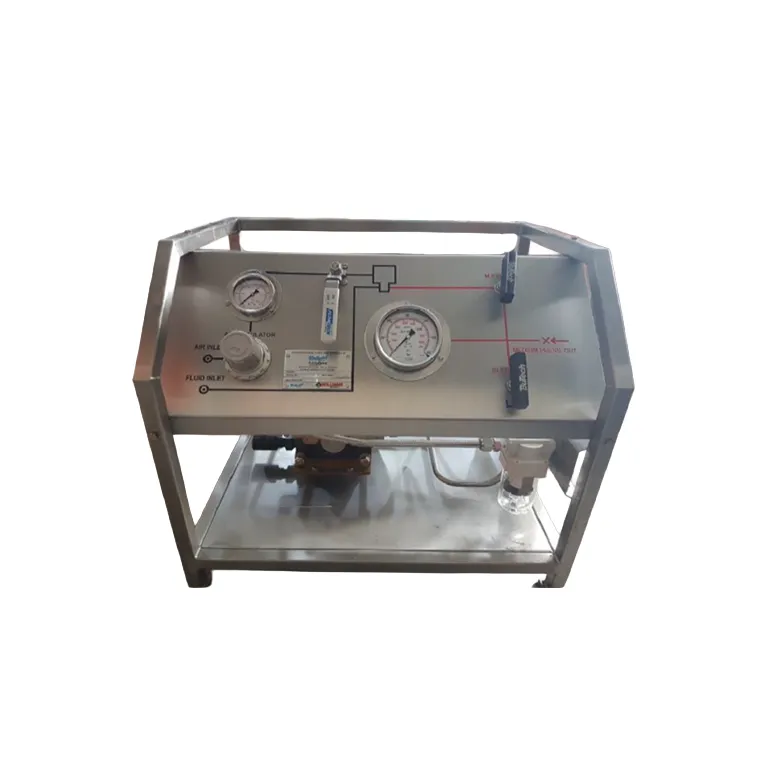

Pressure Test Unit

• Designed with 2 air-driven pumps
• Low-pressure, high-volume pump to quickly fill the lubricator string
• High-pressure, low-volume pump to pressurize the liquid inside the lubricator string up to 15,000 psi
• Pressure relief protects against unexpected excess pressure
• A large pressure gauge allows easy reading of the pressure
• Skid and components are made of stainless steel
• Data can be recorded on a mechanical recorder or on a computer using digital sensors
• 1,000 L water tank integrated inside the unit frame
• 75/100 ft hose reels

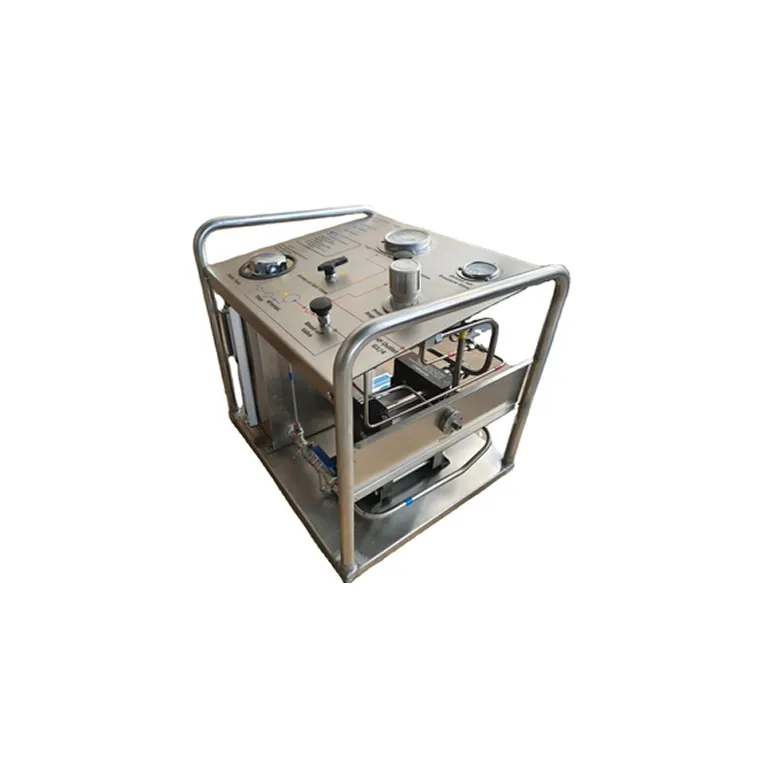

Grease Injection Unit

• Injection pressure of 5,000, 10,000 and 15,000 psi
• Air-driven pumps
• Single or dual 100 ft hose reels, depending on the grease head configuration
• 10 L accumulator
• The frame, control panel and most of the equipment are made of stainless steel
• Integrated grease tank
• If required, chemical fluid transfer can be supplied
